BKM series with servo motor is a helical hypoid geared motor series designed for precision motion control in robotics, CNC and automation. The hypoid gear set offsets the output shaft at 90°, gives higher single-stage ratio than a standard bevel gear, and runs smoothly at high input speed. Six frame sizes 050 to 130 cover 0.2–7.5 kW and up to 1500 Nm output torque, with two-stage ratios 7.5–60 at 92% efficiency and three-stage ratios 60–300 at 90% efficiency. Installation dimensions are fully compatible with the RV series worm gear reducers, so it can drop into an existing RV mount without redesigning the machine frame.
Six frame sizes cover the full power and torque range. Frame 050, 063, 075 and 090 use die-cast aluminium alloy housings that resist rust and shed heat. Frame 110 and 130 use cast iron housings for higher rigidity on heavy axes. Every housing is machined on a vertical machining centre in a single setup, so the bearing bore and the output shaft seat stay concentric.
BKM series with servo motor covers two gear stages. Choose the two-stage version for higher efficiency and faster output, and the three-stage version for higher ratios and heavier loads.
Two gear stages inside the hypoid housing. Two-stage transmission gives the highest efficiency in the BKM range and covers most servo indexing and feed axes.
Three gear stages deliver higher ratios and heavier torque output. The three-stage version covers low-speed high-torque applications and is compatible with the same housing and mounting dimensions as the two-stage version.
BKM series with servo motor shares installation dimensions with the RV series worm gear reducers. This means an existing RV mount can accept a BKM unit without redesigning the machine frame, and a machine originally specified with RV can later be upgraded to BKM without changing the plate, the shaft or the coupling.
BKM and RV share the same mounting bolt pattern and output shaft position, so swapping one for the other is a bolt-on operation rather than a re-engineering job.
Every BKM unit is built around three quality decisions: the housing material, the gear material and the gear finishing process. These three determine service life and positioning stability on a servo axis.
Frame 050 to 090 use die-cast aluminium alloy housings that resist rust and shed heat quickly. Frame 110 and 130 use cast iron housings for higher rigidity on heavy or shock-loaded axes.
Housings are machined on a vertical machining centre in a single setup. This keeps the bearing bore, the hypoid gear seat and the output shaft seat concentric, which protects positioning accuracy.
Gears are made from high-quality alloy steel, surface hardened and precision ground on gear grinding machines. Hard-faced gears give high wear resistance and stable backlash over a long service life.
The hypoid gear set offsets the output at 90° and gives a higher single-stage ratio than a standard bevel gear. It also runs more smoothly and handles higher torque in the same envelope.
BKM units are designed for direct coupling to servo or standard motors through an input flange and hollow input shaft. Custom motor flanges for other brands are available for OEM projects.
Installation dimensions match the RV series worm gear reducers, so BKM can drop into an existing RV mount or replace an RV unit as a direct upgrade without re-machining the frame.

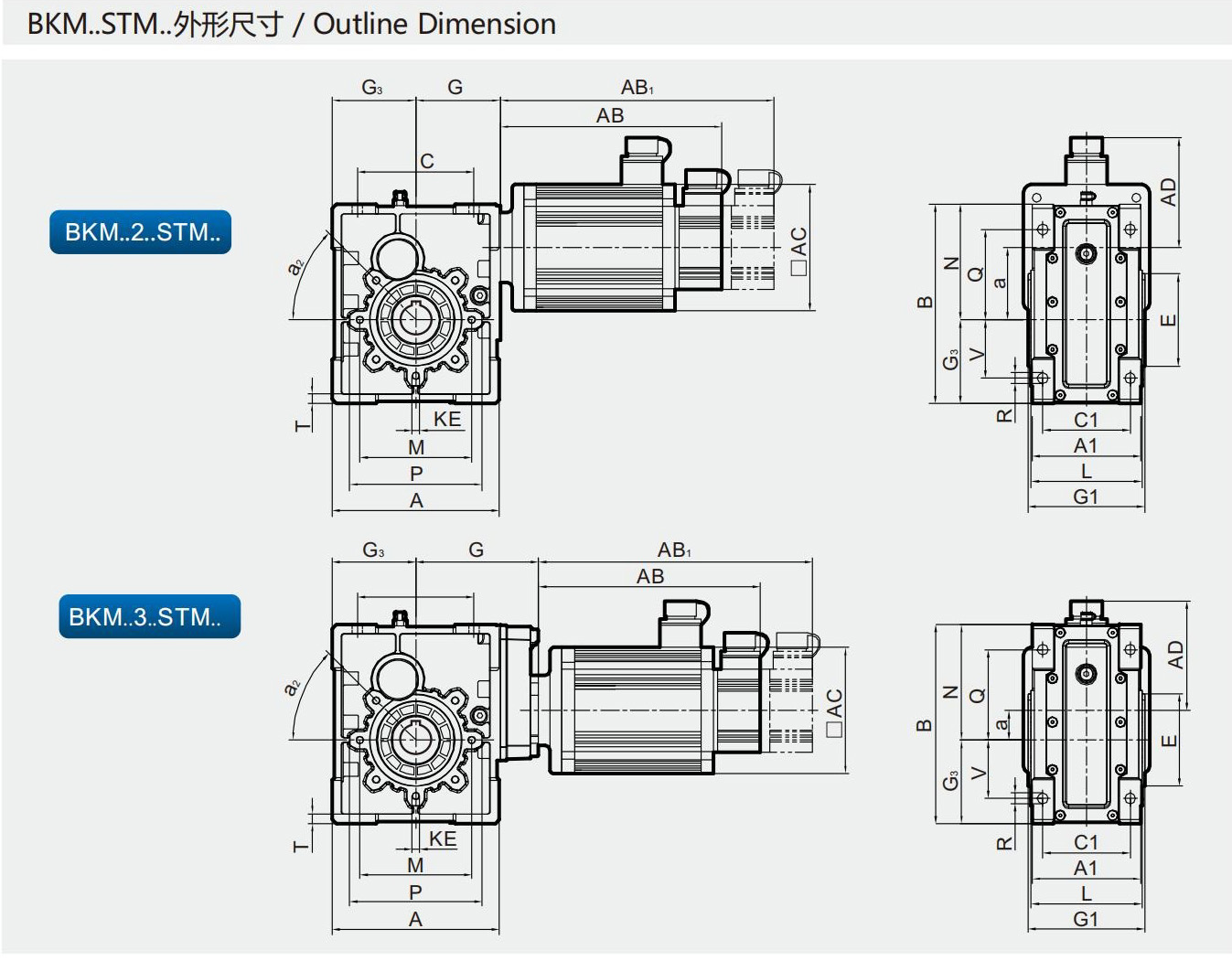

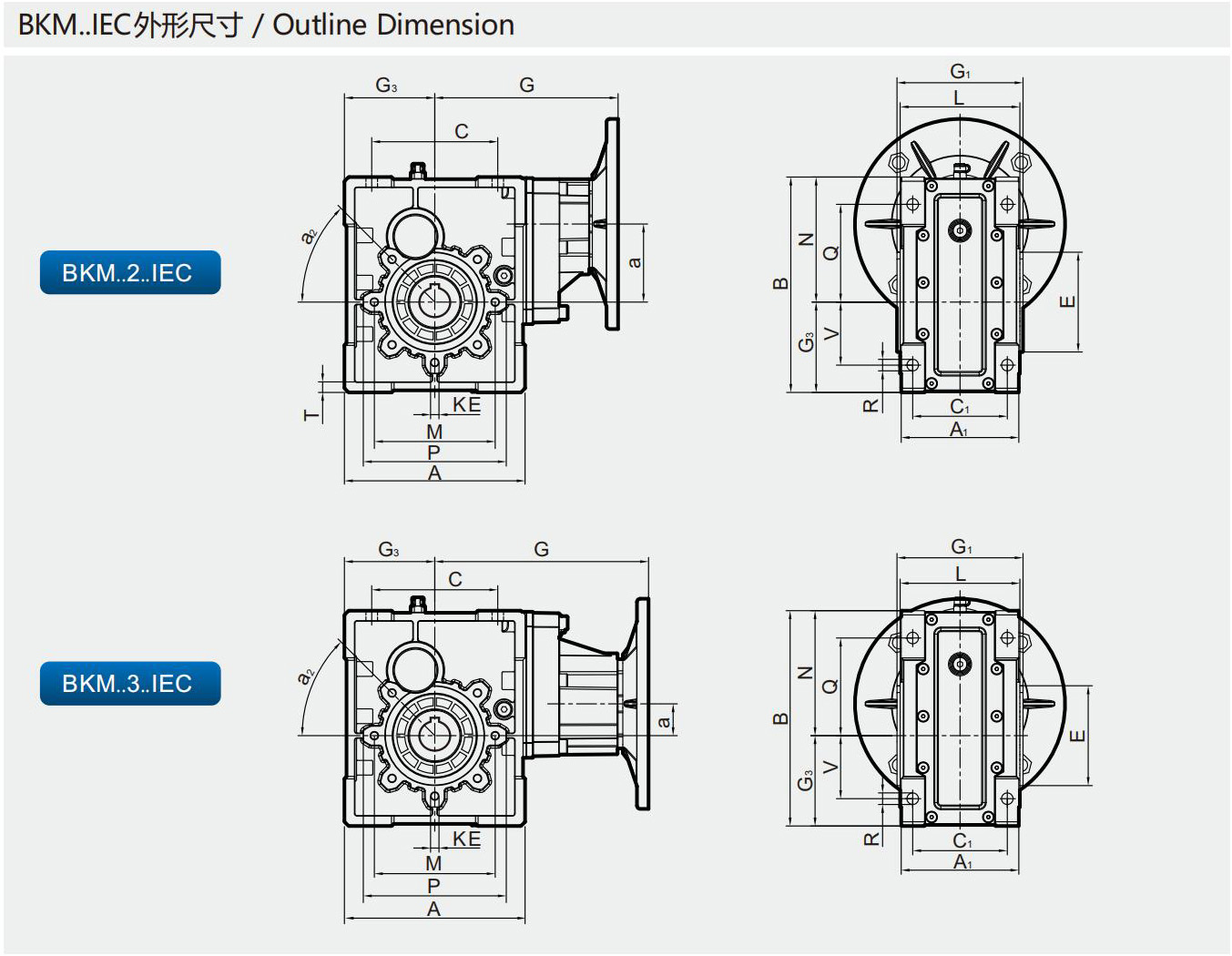

Front and side views of the BKM series with servo motor. Custom frame sizes, output shafts and motor flanges are available on request.
BKM series with servo motor is used wherever a machine needs a compact 90° right-angle geared motor with high single-stage ratio, smooth running and RV-compatible mounting.
Joint drives, end-of-arm tooling and 90° axes on articulated and SCARA robots.
Tool turrets, tool changers, rotary tables and right-angle feed axes.
Pick-and-place heads, gantry axes and rotary indexing tables.
Surgical robots, imaging stages and diagnostic equipment positioning axes.
Assembly line tooling, transfer units and body shop positioning axes.
High-speed labelling, cartoning and rotary printing press drive axes.
Feeder drives, conveyor drives and implement positioning on agricultural machinery.
Filling, sealing and conveying axes on food-processing lines.
Sorters, transfer units and shuttle drive axes on logistics equipment.
Every BKM unit is inspected for gear tooth geometry, housing bore concentricity, backlash, noise, vibration and no-load running before packing. Test reports and material certificates are available.
ISO 9001:2015 certified quality management from raw material to final assembly. Products comply with GB and IEC gear standards.
Common questions about stage selection, RV compatibility, servo matching and service life.
Provide power, output torque, required output speed, ratio, mounting type and servo motor drawing. Raydafon will confirm the correct BKM frame, stage count and motor flange, and reply with a factory-direct quotation within 24 hours.
