130 Series AC Servo Motor

The efficiency of 130 series AC servo motor is 35% higher than the common electric motor. It can be widely used for machine tool, high precision equipment sets of elevator, wood working industries etc

Send Inquiry

Product Description

130 Series AC Servo Motor

Product description

Technical parameters

Motor model	130ST-M04025		130ST-M05025		130ST-M06025		130ST-M07725		130ST-M10010		130ST-M10015		130ST-M10025		130ST-M15015	130ST-M15025
Rated powerkw	1.0		1.3		1.5		2.0		1.0		1.5		2.6		2.3	3.8
Rated line voltage V	220		220		220		220		220		220		220		220	220
Rated current A	4.0		5.0		6.0		7.5		4.5		6.0		10		9.5	13.5
Rated speedrpm	2500		2500		2500		2500		1000		1500		2500		1500	2500
Rated torque N.m	4.0		5.0		6.0		7.7		10		10		10		15	15
Max torqueN.m	12		15		18		22		20		25		25		30	30
Rotor inertiaKg.m²	0.85x10-3		1.06x10-3		1.26x10-3		1.53x10-3		1.94x10-3		1.94x10-3		1.94x10-3		2.77x10-3	2.77x10-3
Weight kg	7.7		8.2		8.9		10		11.5		11.5		11.5		14.4	14.4
Encoder line numberPPR	Class F
Insulation grade	2500
IP grade	IP65
Service environment	Temperature: -20℃ ~ + 40℃ Humidity: relative humidity＜90% (frost free condition)
Winding socket	Winding wire				U (red)			V (yellow)			W (blue)			PE (yellow green/black)
	Socket No.				1			2			3			4
Encoder socket	Signal wire	5V	0V	B+	Z-	U+	Z+	U-	A+	V+	W+	V-	A-	B-	W-	PE
	Socket No.	2	3	4	5	6	7	8	9	10	11	12	13	14	15	1

Model code:
(Take 60 - ST - M - 00630 Z1 as an example.)
60: frame No.;
ST: sine drive wave;
M: code of feedback components which is M-photoelectric encoder;
00630: code of performance parameters. The first three numbers indicates the rated torque and the after two indicates rated speed. For example, 00630 means that the rated torque is 0.6N.m and the rated speed is 3000rpm.
Z1: derived code. Z1 means magnetic brake and Z2 means permanent magnet brake.

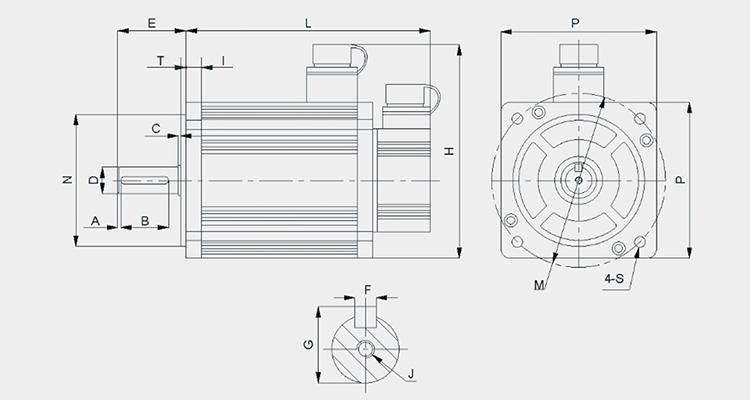

Outline and installation dimension

Dimension figure

Rated torque N.m		A	B	C	D	E	F	G	H	I	J	T	M	N	P	S	L*	L1 *	L2*
4		2.5	40	2	⌀19	57	6	24.5	178	13	M5	5	⌀145	⌀110	130	⌀9	166	223	236
5		2.5	40	2	⌀19	57	6	24.5	178	13	M5	5	⌀145	⌀110	130	⌀9	171	228	241
6		2.5	40	2	⌀22	57	6	24.5	178	13	M6	5	⌀145	⌀110	130	⌀9	179	236	249
7.7		2.5	40	2	⌀22	57	6	24.5	178	13	M6	5	⌀145	⌀110	130	⌀9	192	249	262
10	1000 (rpm)	2.5	40	2	⌀22	57	6	24.5	178	13	M6	5	⌀145	⌀110	130	⌀9	204	254	264
	1500 (rpm)	2.5	40	2	⌀22	57	6	24.5	178	13	M6	5	⌀145	⌀110	130	⌀9	204	254	264
	2500 (rpm)	2.5	40	2	⌀22	57	6	24.5	178	13	M6	5	⌀145	⌀110	130	⌀9	204	254	264
15	1500 (rpm)	2.5	40	2	⌀22	57	6	24.5	178	13	M6	5	⌀145	⌀110	130	⌀9	241	322	311
15	2500 (rpm)	2.5	40	2	⌀22	57	6	24.5	178	13	M6	5	⌀145	⌀110	130	⌀9	241	322	311

Note: the unit is mm. L is the electric motor length without brake. L1 is the electric motor length with magnetic brake. L2 is the electric motor length with permanent magnet brake.

RAYDAFON is a leading 130 series AC servo motor manufacturer and supplier, specializes in design and manufacture industrial electric motors, speed reducers and gearboxes since 1990. With manufacturing process in accordance to IEC standard, our company is committed to providing quality AC electric motors with a variety of model selections and configurations, to meet specific needs for your equipment and machines.
