YS series is the entry tier of the Raydafon three-phase asynchronous motor family. It uses low-noise bearings and a compact cast frame to keep the drive quiet and smooth, which suits light-duty industrial machines that do not need IE2 or IE3 efficiency. The motor is designed for direct-on-line starting on a 380V / 50Hz supply, and it can be fitted with B3 foot, B14 small flange, B34 small flange + foot, B5 large flange or B35 large flange + foot mounting. Rated power range is 0.06 kW to 2.2 kW across three synchronous speeds, and the maximum rated torque reaches about 11.4 Nm at 6-pole. Typical uses include food packaging machinery, chemical equipment, woodworking machines, light cranes, metal rolling machine auxiliary axes and industrial fans.
YS series is offered in three synchronous speed classes. Each class covers a different power range so the motor can be matched to the driven machine without oversizing the frame.
Six frames cover the full YS range. Smaller frames use a compact cast frame for light-load auxiliary axes, and the larger frame 90 handles the top of the YS power range.
YS supports five IEC mounting configurations. The correct configuration is selected by the driven machine layout, not by the motor itself. Full dimensional drawings for each configuration are listed below.

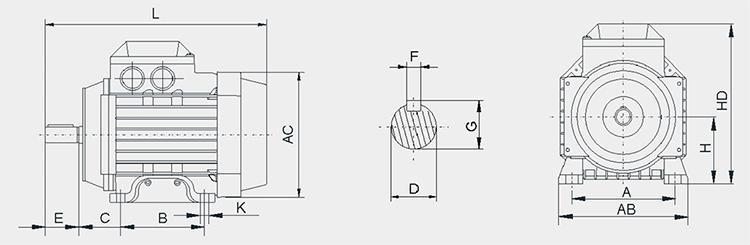

Standard horizontal foot-mounted configuration. The motor sits on a flat machine plate and is bolted through four foot holes. This is the most common configuration for pumps, fans, conveyors and general light-duty industrial drives.
Reference parameter table across the three speed classes. Exact per-model ratings are available on request.
| Parameter | 2-Pole (3000 rpm) | 4-Pole (1500 rpm) | 6-Pole (1000 rpm) |
|---|---|---|---|
| Rated power | 0.09 – 2.2 kW | 0.06 – 1.5 kW | 0.18 – 1.1 kW |
| Frame range | 56 – 90 | 56 – 90 | 71 – 90 |
| Rated voltage | 380V | 380V | 380V |
| Rated frequency | 50Hz | 50Hz | 50Hz |
| Efficiency range | 62% – 81% | 56% – 79% | 59% – 74% |
| Power factor range | 0.68 – 0.86 | 0.58 – 0.79 | 0.61 – 0.70 |
| Locked-rotor torque | Ts/Tn ≥ 2.2 | Ts/Tn ≥ 2.3 | Ts/Tn ≥ 2.0 |
| Max torque | Tmax/Tn ≥ 2.3 | Tmax/Tn ≥ 2.4 | Tmax/Tn ≥ 2.0 – 2.1 |
| Locked-rotor current | Is/In ≤ 6.0 – 7.0 | Is/In ≤ 6.0 – 6.5 | Is/In ≤ 5.5 – 6.0 |
| Duty cycle | S1 continuous | S1 continuous | S1 continuous |
| Mounting | B3 / B14 / B34 / B5 / B35 | B3 / B14 / B34 / B5 / B35 | B3 / B14 / B34 / B5 / B35 |

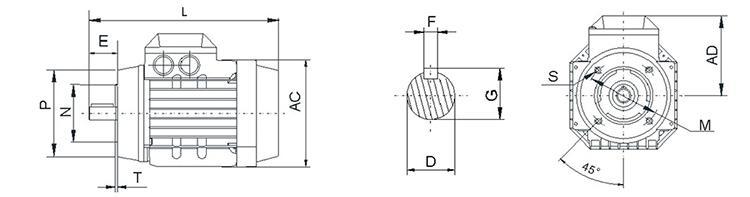

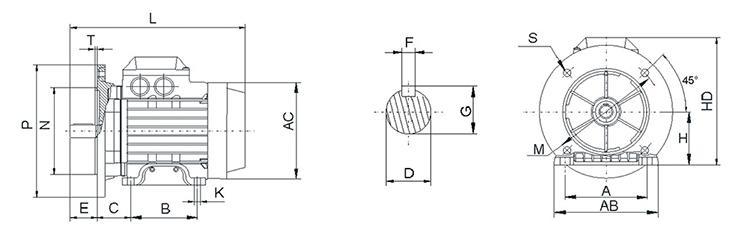

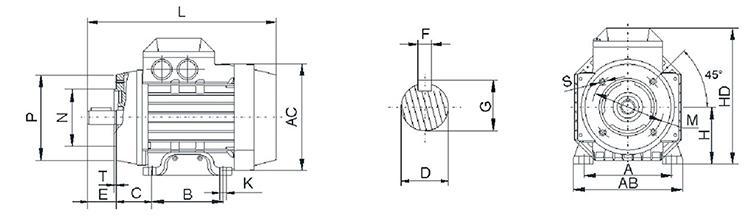

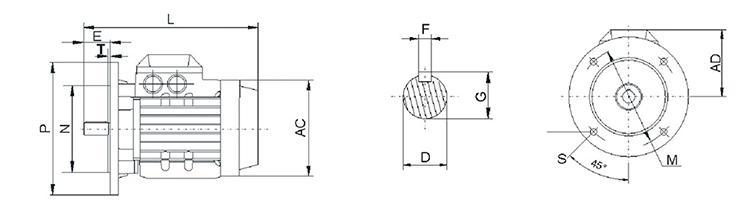

Dimensional drawings for the five mounting configurations. All frames follow IEC standard dimensions, so YS can replace an existing motor of the same frame without changing the mounting plate.
YS series AC induction motor is used on light-duty industrial equipment where the drive needs a compact, low-noise motor without paying for IE2 or IE3 efficiency.
Sealing, labeling and cartoning drives on food packaging lines.
Dosing pumps, agitators and small process drives in chemical plants.
Feed rollers, dust extraction fans and auxiliary axes on woodworking machines.
Travel and light lifting drives on small cranes and hoists.
Coolant pumps, roller adjustment and auxiliary drives on rolling machines.
Small fans, blowers and ventilation units on industrial premises.
Pumps, mixers, conveyors and other machines that need a compact three-phase motor.
Secondary axes on packaging lines where the main drive uses a larger motor.
Every YS motor is inspected for winding continuity, insulation resistance, no-load current and vibration before packing. Material certificates are available on request.
ISO 9001:2015 certified quality management from raw material to final assembly. Products follow GB and IEC standards.
Common questions about efficiency, mounting and OEM supply.
Provide rated power, synchronous speed, voltage, frequency, mounting configuration and driven machine description. Raydafon will confirm the correct YS frame and mounting, and reply with a factory-direct quotation within 24 hours.
