The 90 series AC servo motor can operate stably in both high speed or low speed conditions. They are suitable for high precision equipment sets of food, elevator, chemical, wood working industries etc.
| Motor model |
|
|
|
|||||||||||||
| Rated powerkw | 0.75 | 0.73 | 1.0 | |||||||||||||
| Rated line voltage V | 220 | 220 | 220 | |||||||||||||
| Rated current A | 3 | 3 | 4 | |||||||||||||
| Rated speedrpm | 3000 | 2000 | 2500 | |||||||||||||
| Rated torque N.m | 2.4 | 3.5 | 4 | |||||||||||||
| Max torqueN.m | 7.1 | 10.5 | 12 | |||||||||||||
| Rotor inertiaKg.m2 | 2.45X10-4 | 3.4X10-4 | 3.7X10-4 | |||||||||||||
| Weight kg | 3.4 | 3.8 | 4.31 | |||||||||||||
| Encoder line numberPPR | Class F | |||||||||||||||
| Insulation grade | 2500 | |||||||||||||||
| IP grade | IP65 | |||||||||||||||
| Service environment |
Temperature: -20℃ ~ + 40℃ Humidity: relative humidity＜90% (frost free condition) |
|||||||||||||||
| Winding socket | Winding wire | U (red) | V (yellow) | W (blue) | PE (yellow green/black) | |||||||||||
| Socket No. | 1 | 2 | 3 | 4 | ||||||||||||
| Encoder socket | Signal wire | 5V | 0V | B+ | Z- | U+ | Z+ | U- | A+ | V+ | W+ | V- | A- | B- | W- | PE |
| Socket No. | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 1 | |
Model code:
(Take 60 - ST - M - 00630 Z1 as an example.)
60: frame No.;
ST: sine drive wave;
M: code of feedback components which is M-photoelectric encoder;
00630: code of performance parameters. The first three numbers indicates the rated torque and the after two indicates rated speed. For example, 00630 means that the rated torque is 0.6N.m and the rated speed is 3000rpm.
Z1: derived code. Z1 means magnetic brake and Z2 means permanent magnet brake.

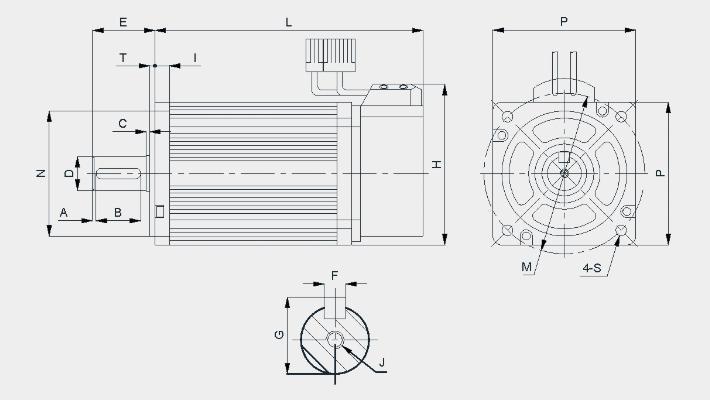

| Motor model | A | B | C | D | E | F | 6 | H | I | J | T | M | N | P | S | L* | L1* | L2* |
|
|
3 | 25 | 2 | ⌀16 | 35 | 5 | 18 | 93 | 8 | M5 | 3 | ⌀100 | ⌀80 | 86 | ⌀6.5 | 155 | 203 | 212 |
|
|
3 | 25 | 2 | ⌀16 | 35 | 5 | 18 | 93 | 8 | M5 | 3 | ⌀100 | ⌀80 | 86 | ⌀6.5 | 177 | 225 | 234 |
|
|
3 | 25 | 2 | ⌀16 | 35 | 5 | 18 | 93 | 8 | M5 | 3 | ⌀100 | ⌀ 80 | 86 | ⌀6.5 | 187 | 235 | 244 |
Note: the unit is mm. L is the electric motor length without brake. L1 is the electric motor length with magnetic brake. L2 is the electric motor length with permanent magnet brake.
