80 Series AC Servo Motor

The 80 series AC servo motor has the advantages of high sensitivity and rapid start. They are widely used for medical machinery, high precision equipment sets of food, electricity, wood working industries etc.

Send Inquiry

Product Description

80 Series AC Servo Motor

Product description

Technical parameters

Motor model	80ST-M01330				80ST-M02430				80ST-M03520				80ST-M04025
Rated powerkw	0.4				0.75				0.73				1.0
Rated line voltage V	220				220				220				220
Rated current A	2				3				3				4.4
Rated speedrpm	3000				3000				2000				2500
Rated torque N.m	1.27				2.39				3.5				4
Max torqueN.m	3.8				7.1				10.5				12
Rotor inertiaKg.m²	1.05x10-4				1.28x10-4				2.63x10-4				2.97x10-4
Weight kg	1.78				2.86				3.7				3.8
Encoder line numberPPR	Class F
Insulation grade	2500
IP grade	IP65
Service environment	Temperature: -20℃ ~ + 40℃ Humidity: relative humidity＜90% (frost free condition)
Winding socket	Winding wire				U (red)			V (yellow)			W (blue)			PE (yellow green/black)
	Socket No.				1			2			3			4
Encoder socket	Signal wire	5V	0V	B+	Z-	U+	Z+	U-	A+	V+	W+	V-	A-	B-	W-	PE
	Socket No.	2	3	4	5	6	7	8	9	10	11	12	13	14	15	1

Model code:
(Take 60 - ST - M - 00630 Z1 as an example.)
60: frame No.;
ST: sine drive wave;
M: code of feedback components which is M-photoelectric encoder;
00630: code of performance parameters. The first three numbers indicates the rated torque and the after two indicates rated speed. For example, 00630 means that the rated torque is 0.6N.m and the rated speed is 3000rpm.
Z1: derived code. Z1 means magnetic brake and Z2 means permanent magnet brake.

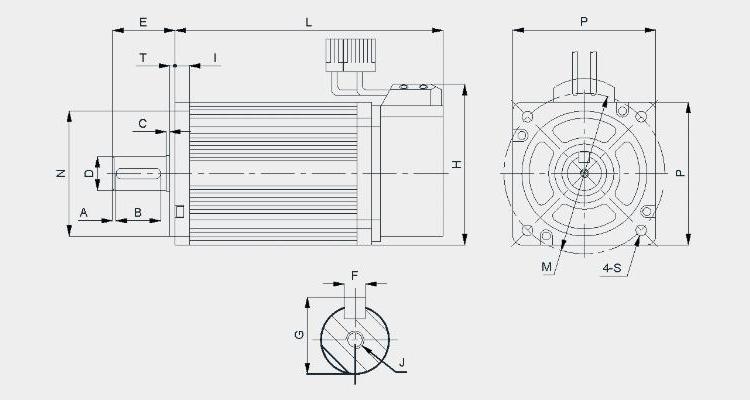

Outline and installation dimension

Dimension figure

Motor model	A	B	C	D	E	F	6	H	I	J	T	M	N	P	S	L*	L1*	L2*
80ST-M01330	2	25	2	⌀19	35	6	21.5	90	8	M5	3	⌀90	⌀70	80	⌀6	129	169	183
80ST-M02430	2	25	2	⌀19	35	6	21.5	90	8	M5	3	⌀90	⌀ 70	80	⌀6	156	196	211
80ST-M03520	2	25	2	⌀19	35	6	21.5	90	8	M5	3	⌀90	⌀70	80	⌀6	184	224	238
80ST-M04025	2	25	2	⌀19	35	6	21.5	90	8	M5	3	⌀90	⌀70	80	⌀6	196	236	238

Note: the unit is mm. L is the electric motor length without brake. L1 is the electric motor length with magnetic brake. L2 is the electric motor length with permanent magnet brake.

RAYDAFON is an experienced 80 series AC servo motor manufacturer and supplier, specializes in design and manufacture industrial electric motors, speed reducers and gearboxes since 1990. With manufacturing process in accordance to IEC standard, our company is committed to providing quality AC electric motors with a variety of model selections and configurations, to meet specific needs for your equipment and machines.
