YE3 Series AC Induction Motor

The YE3 series AC induction motor, asynchronous motor adopts high precision low noise bearing. It also reduces electromagnetic torque ripple and increases machining precision of mechanical parts. It can be widely used for wood working machine, crane, construction machinery, compressor, transport conveyor, dredger, engine and transverter, washing machine, metal rolling machine, draught fan etc.

Send Inquiry

Product Description

YE3 Series AC Induction Motor, Asynchronous Motor

Product description

This series of electric motor can be divided into three models according to the speed:
1. The speed is 3000r/min and the rated power is from 0.75~22kw;
2. The speed is 1500r/min and the rated power is from 0.75~22kw;
3. The speed is 1000r/min and the rated power is from 0.75~15kw.

The adaptable voltage of all the three models of electric motors is 380V.

Technical parameters

3000r/min, 380V, 50Hz

Model	Rated power		Rated speed	Efficiency	Power factor	Rated current	Rated torque	Locked-rotor torque	Max torque	Locked-rotor current
	Rated power		Rated speed	Efficiency	Power factor	Rated current	Rated torque	Rated torque	Rated torque	Rated current
	Kw	HP	rpm	η%	COS ⌀	A	Nm	Ts/Tn	Tmax/Tn	Is/I n
YE3-801-2	0.75	1	2880	80.7	0.82	1.72	2.49	2.3	2.3	7.0
YE3-802-2	1.1	1.5	2880	82.7	0.83	2.43	3.65	2.2	2.3	7.3
YC3-90S-2	1.5	2	2095	84.2	0.84	3.22	4.95	2.2	2.3	7.6
YE3 90L-2	2.2	3	2895	85.9	0.85	4.58	7.26	2.2	2.3	7.6
YE3-100L-2	3	4	2895	87.1	0.87	6.02	9.90	2.2	2.3	7.8
YE3-112M-2	4	5.5	2905	88.1	0.88	7.84	13.1	2.2	2.3	8.3
YE3-132S1-2	5.5	7.5	2930	89.2	0.88	10.6	17.9	2.0	2.3	8.3
YE3-132S2-2	7.5	10	2830	90.1	0.88	14.4	24.4	2.0	2.3	7.9
YE3-160M1-2	11	15	2945	91.2	0.89	20.6	35.7	2.0	2.3	8.1
YE3-160M2-2	15	20	2945	91.9	0.89	27.9	48.6	2.0	2.3	8.1
YE3-160L-2	10.5	25	2940	92.4	0.89	34.2	60.1	2.0	2.3	8.2
YE3-180M-2	22	30	2955	92.7	0.89	40.5	71.1	2.0	2.3	8.2

1500r/min, 380V, 50Hz

Model	Rated power		Rated speed	Efficiency	Power factor	Rated current	Rated torque	Locked-rotor torque	Max torque	Locked-rotor current
	Rated power		Rated speed	Efficiency	Power factor	Rated current	Rated torque	Rated torque	Rated torque	Rated current
	Kw	HP	rpm	η%	COS ⌀	A	Nm	Ts/Tn	Tmax/Tn	Is/I n
YE3-802 4	0.75	1	1420	82.5	0.75	1.84	5.04	2.3	2.3	6.6
YE3-90S-4	1.1	1.5	1445	84.1	0.76	2.61	7.27	2.3	2.3	6.8
YE3-90L-4	1.5	2	1445	85.3	0.77	3.47	9.91	2.3	2.3	7.0
YE3-100L1-4	2.2	3	1435	86.7	0.81	4.76	14.6	2.3	2.3	7.6
YE3-100L2-4	3	4	1435	87.7	0.82	6.34	20.0	2.3	2.3	7.6
YE3-112M-4	4	5.5	1440	88.6	0.82	8.37	26.5	2.2	2.3	7.9
YC3-132S-4	5.5	7.5	1460	89.6	0.83	11.2	36.0	2.0	2.3	7.9
YE3-132M-4	7.5	10	1460	90.4	0.84	15.0	49.1	2.0	2.3	7.5
YE3-160M-4	11	15	1465	91.4	0.85	21.5	71.7	2.2	2.3	7.7
YE3-160L-4	15	20	1465	92.1	0.86	28.9	97.8	2.2	2.3	7.9
YE3 -180M-4	18.5	25	1470	92.6	0.86	35.3	120.2	2.0	2.3	7.0
YE3-180I-4	22	30	1470	93.0	0.86	41.8	142.9	2.0	2.3	7.8

1000r/min, 380V, 50Hz

Model	Rated power		Rated speed	Efficiency	Power factor	Rated current	Rated torque	Locked-rotor torque	Max torque	Locked-rotor current
	Rated power		Rated speed	Efficiency	Power factor	Rated current	Rated torque	Rated torque	Rated torque	Rated current
	Kw	HP	rpm	η%	COS ⌀	A	Nm	Ts/Tn	Tmax/Tn	Is/I n
YE3-90S-6	0.75	1	935	78.9	0.71	2.03	7.66	2.0	2.1	6.0
YE3-90L-6	1.1	1.5	945	81.0	0.73	2.83	11.1	2.0	2.1	6.0
YE3-100L-6	1.5	2	949	82.5	0.73	3.78	15.1	2.0	2.1	6.5
YE3-112M-6	2.2	3	955	84.3	0.74	5.36	22.0	2.0	2.1	6.6
YE3-132S-6	3	4	968	85.6	0.74	7.20	29.6	2.0	2.1	6.8
YE3-132M1-6	4	5.5	968	86.8	0.74	9.46	39.5	2.0	2.1	6.8
YE3-132M2-6	5.5	7.5	968	88.0	0.75	12.7	54.3	2.0	2.1	7.0
YE3-160M-6	7.5	10	970	89.1	0.79	16.2	73.8	2.0	2.1	7.0
YE3-160L-6	11	15	970	90.3	0.80	23.1	108.3	2.0	2.1	6.2
YE3-180L-6	15	20	975	91.2	0.81	30.9	146.9	2.0	2.1	7.3

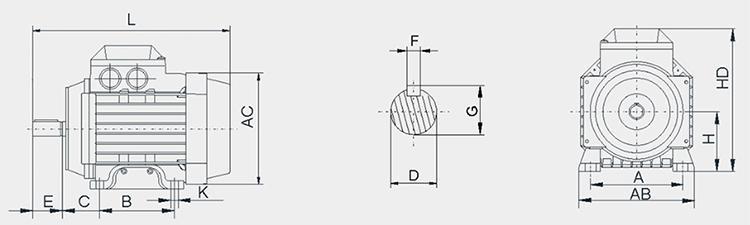

Outline and installation dimension

IM B3 H80-132

Dimension figure

Frame No.	A	B	C	D	E	F	G	H	K	AB	AC	HD	L
Frame No.	A	B	C	D	E	F	G	H	K	AB	AC	HD	IE3
80M	125	100	50	⌀19	40	6	21.5	80	⌀10	154	145x145	190	305
90S	140	100	56	⌀ 24	50	8	27	90	⌀10	180	160x160	205	340
90L	140	125	56	⌀24	50	8	27	90	⌀10	180	160x160	205	365
100L	160	140	63	⌀28	60	8	31	100	⌀12	205	185x185	240	405
112M	190	140	70	⌀28	60	8	31	112	⌀12	235	200x200	270	455
132S	216	140	89	⌀38	80	10	41	132	⌀12	261	245x245	310	470
132M	216	178	89	⌀38	80	10	41	132	⌀12	261	245 x24b	310	510
160M	254	210	108	⌀42	110	12	45	160	⌀14.5	320	320x320	450	640
160L	254	254	108	⌀42	110	12	45	160	⌀14.5	320	320x320	450	680
180M	279	241	121	⌀48	110	14	51.5	180	⌀14.5	355	360x360	500	790
180L	279	279	121	⌀48	110	14	51.5	180	⌀14.5	355	360x360	500	930

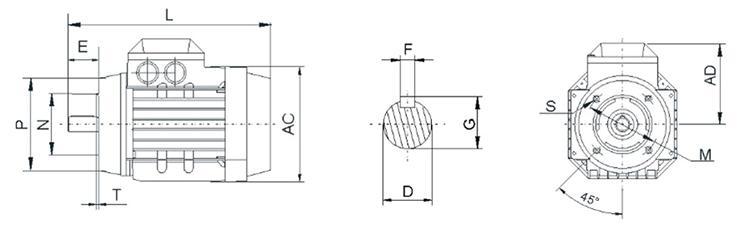

IM B14 H80-112

Dimension figure

Frame No.	D	E	F	G	M	N	P	S	T	AC	AD	L
80M	⌀19	40	6	21.5	100	80	120	M6	3.0	145x145	115	305
90S	⌀24	50	8	27	115	95	140	M8	3.0	160x160	122	340
90L	⌀24	50	8	27	115	95	140	M8	3.0	160x160	122	365
100L	⌀28	60	8	31	130	110	155	M8	3.5	185x185	137	405
112M	⌀28	60	8	31	130	110	160	M8	3.5	200 x 200	155	455

IM B34 H80-132

Dimension figure

Frame No.	A	B	C	D	E	F	G	H	K	M	N	P	S	T	AB	AC	HD	L
80M	125	100	50	⌀19	40	6	21.5	80	⌀10	100	80	120	M6	3.0	154	145x145	190	305
90S	140	100	56	⌀ 24	50	8	27	90	⌀10	115	95	140	M8	3.0	180	160x160	205	340
90L	140	125	56	⌀24	50	8	27	90	⌀10	115	95	140	M8	3.0	180	160x160	205	365
100L	160	140	63	⌀28	60	8	31	100	⌀12	130	110	155	M8	3.5	205	185x185	240	405
112M	190	140	70	⌀28	60	8	31	112	⌀12	130	110	160	M8	3.5	235	200x200	270	455

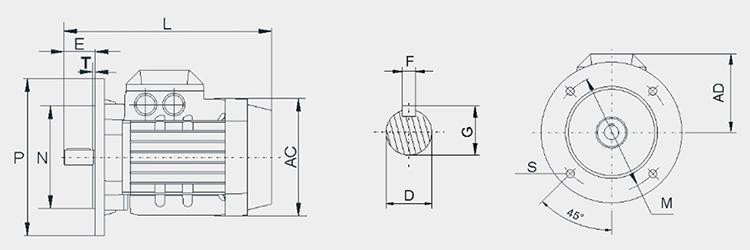

IM B5 H80-180

Dimension figure

Frame No.	D	E	F	G	H	K	M	N	P	S	T	AC	AD	L
80M	⌀19	40	6	21.5	80	⌀10	165	130	200	12	3.5	145x145	115	305
90S	⌀ 24	50	8	27	90	⌀10	165	130	200	12	3.5	160x160	122	340
90L	⌀24	50	8	27	90	⌀10	165	130	200	12	3.5	160x160	122	365
100L	⌀28	60	8	31	100	⌀12	215	180	250	14.5	4	185x185	137	405
112M	⌀28	60	8	31	112	⌀12	215	180	250	14.5	4	200x200	155	455
132S	⌀38	80	10	41	132	⌀12	265	230	300	14.5	4	245x245	180	470
132M	⌀38	80	10	41	132	⌀12	265	230	300	14.5	4	245 x24b	180	510
160M	⌀42	110	12	45	160	⌀14.5	300	250	350	18.5	5	320x320	290	640
160L	⌀42	110	12	45	160	⌀14.5	300	250	350	18.5	5	320x320	290	680
180M	⌀48	110	14	51.5	180	⌀14.5	300	255	350	18.5	5	360x360	320	790
180L	⌀48	110	14	51.5	180	⌀14.5	300	250	350	18.5	5	360x360	320	930

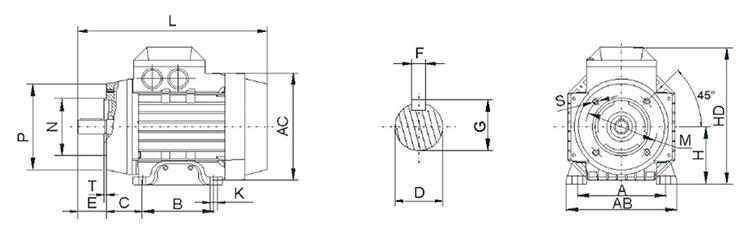

IM B35 H80-180

Dimension figure

Frame No.	A	B	C	D	E	F	G	H	K	M	N	P	S	T	AB	AC	HD	L
80M	125	100	50	⌀19	40	6	21.5	80	⌀10	165	130	200	12	3.5	154	145x145	190	305
90S	140	100	56	⌀ 24	50	8	27	90	⌀10	165	130	200	12	3.5	180	160x160	205	340
90L	140	125	56	⌀24	50	8	27	90	⌀10	165	130	200	12	3.5	180	160x160	205	365
100L	160	140	63	⌀28	60	8	31	100	⌀12	215	180	250	14.5	4	205	185x185	240	405
112M	190	140	70	⌀28	60	8	31	112	⌀12	215	180	250	14.5	4	235	200x200	270	455
132S	216	140	89	⌀38	80	10	41	132	⌀12	265	230	300	14.5	4	261	245x245	310	470
132M	216	178	89	⌀38	80	10	41	132	⌀12	265	230	300	14.5	4	261	245 x24b	310	510
160M	254	210	108	⌀42	110	12	45	160	⌀14.5	300	250	350	18.5	5	320	320x320	450	640
160L	254	254	108	⌀42	110	12	45	160	⌀14.5	300	250	350	18.5	5	320	320x320	450	680
180M	279	241	121	⌀48	110	14	51.5	180	⌀14.5	300	255	350	18.5	5	355	360x360	500	790
180L	279	279	121	⌀48	110	14	51.5	180	⌀14.5	300	250	350	18.5	5	355	360x360	500	930
