110 Series AC Servo Motor

The insulation grade of 110 series AC servo motor is F and the IP grade is IP65. It can be used under environment temperature from -20℃ ~ + 40℃. It is widely used for high precision equipment sets of food, chemical, medical machinery industries etc.

Send Inquiry

Product Description

110 Series AC Servo Motor

Product description

Technical parameters

Motor model	110ST-M02030		110ST-M04020			110ST-M04030			110ST-M05030			110ST-M06020			110ST-M06030
Rated powerkw	0.6		0.8			1.2			1.5			1.2			1.8
Rated line voltage V	220		220			220			220			220			220
Rated current A	2.5		3.5			5.0			6.0			4.5			6.0
Rated speedrpm	3000		2000			3000			3000			2000			3000
Rated torque N.m	2		4			4			5			6			6
Max torqueN.m	0.3X10-3		10.54X10-3			0.54X10-3			0.63X10-3			0.76X10-3			0.76X10-3
Rotor inertiaKg.m²	4.5		5.5			5.5			6.1			6.7			6.7
Weight kg
Encoder line numberPPR	Class F
Insulation grade	2500
IP grade	IP65
Service environment	Temperature: -20℃ ~ + 40℃ Humidity: relative humidity＜90% (frost free condition)
Winding socket	Winding wire				U (red)			V(yellow)			W (blue)			PE (yellow green/black)
	Socket No.				1			2			3			4
Encoder socket	Signal wire	5V	0V	B+	Z-	U+	Z+	U-	A+	V+	W+	V-	A-	B-	W-	PE
	Socket No.	2	3	4	5	6	7	8	9	10	11	12	13	14	15	1

Model code:
(Take 60 - ST - M - 00630 Z1 as an example.)
60: frame No.;
ST: sine drive wave;
M: code of feedback components which is M-photoelectric encoder;
00630: code of performance parameters. The first three numbers indicates the rated torque and the after two indicates rated speed. For example, 00630 means that the rated torque is 0.6N.m and the rated speed is 3000rpm.
Z1: derived code. Z1 means magnetic brake and Z2 means permanent magnet brake.

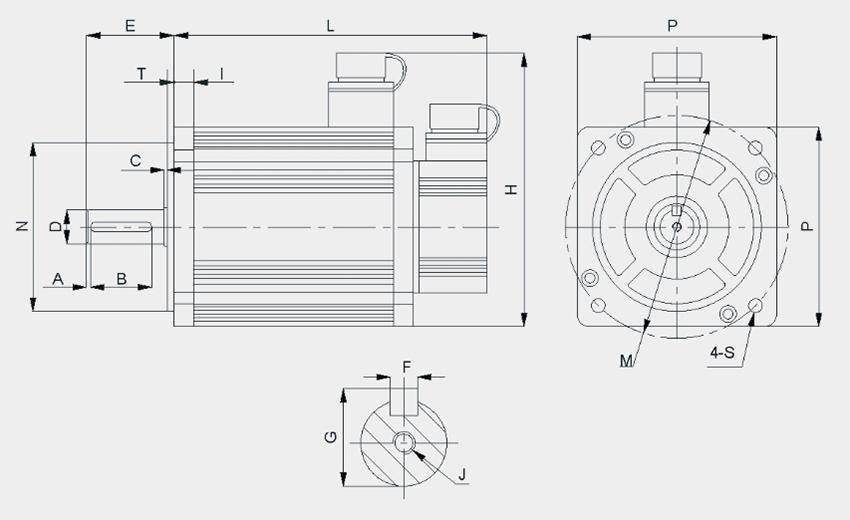

Outline and installation dimension

Dimension figure

Rated torque N.m	A	B	C	D	E	F	G	H	I	J	T	M	N	P	S	L*	L1 *	L2*
2	2.5	40	2	⌀19	55	6	21.5	158	13	M5	5	⌀130	⌀95	110	⌀9	159	212	215
4	2.5	40	2	⌀19	55	6	21.5	158	13	M5	5	⌀130	⌀95	110	⌀9	192	242	245
5	2.5	40	2	⌀19	55	6	21.5	158	13	M5	5	⌀130	⌀95	110	⌀9	204	258	260
6	2.5	40	2	⌀19	55	6	21.5	158	13	M5	5	⌀130	⌀95	110	⌀9	219	262	275

Note: the unit is mm. L is the electric motor length without brake. L1 is the electric motor length with magnetic brake. L2 is the electric motor length with permanent magnet brake.

RAYDAFON is a professional 110 series AC servo motor manufacturer and supplier, specializes in design and manufacture industrial electric motors, speed reducers and gearboxes since 1990. With manufacturing process in accordance to IEC standard, our company is committed to providing quality AC electric motors with a variety of model selections and configurations, to meet specific needs for your equipment and machines.
