RV with servo motor is a Raydafon pre-assembled package that combines the BMRV worm gear reducer with a matched servo motor on the input side. The worm reducer uses a hardened alloy steel worm and a tin bronze worm wheel, with a die-cast aluminium alloy housing for frames 025 to 090 and a cast iron housing for frames 110 to 150. Output torque reaches 1760 Nm and the package covers 0.06 kW to 15 kW. As a pre-assembled combination, the customer receives the gearbox and motor already aligned and coupled, which removes the mounting, alignment and programming step at the machine builder.
Each frame is defined by its centre distance. Torque capacity scales with frame size, and the frame also determines which motor power can be fitted on the input side.
The RV worm reducer and the servo motor are two different products. This page describes the pre-assembled combination, where the reducer is matched to a servo motor on the input side.
The gearbox that reduces speed and multiplies torque. Worm and worm wheel mesh at 90°, giving a compact right-angle drive. Housing is aluminium for frames 025 to 090 and cast iron for frames 110 to 150. Worm is surface-hardened to 56–62 HRC.
The motor drives the worm shaft. Because the servo motor is matched and coupled at the factory, the customer does not need to select a separate adapter, align the coupling or verify the motor flange on site.
The bar length below shows the relative maximum output torque of each frame. RV150 reaches 1760 Nm and the smaller frames scale down proportionally.

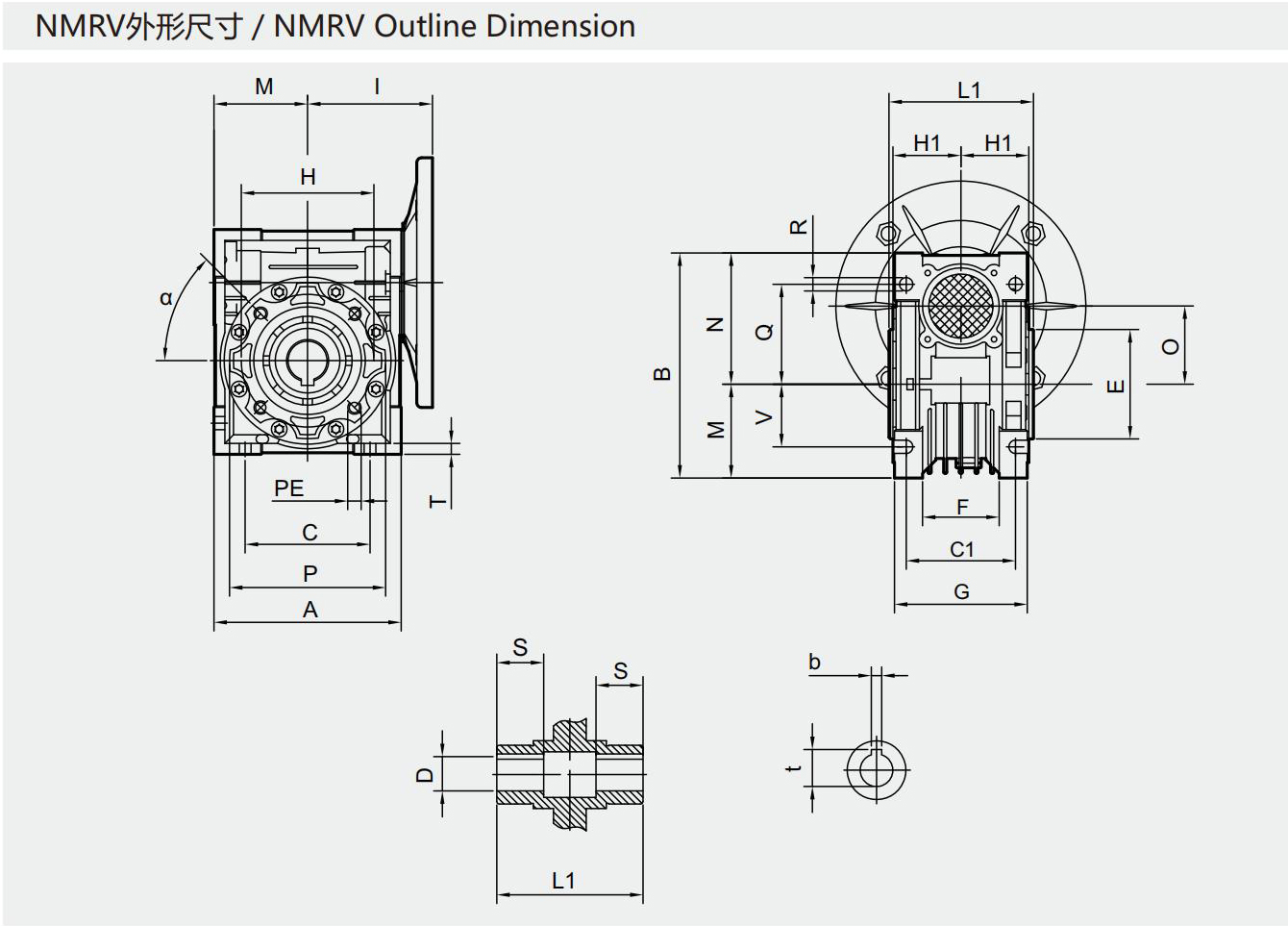

Front and side views of the RV with servo motor package. Custom frame size, shaft, flange and servo motor adapter are available on request.
RV with servo motor is used wherever a machine needs a compact 90° right-angle drive with high reduction ratio and precise speed control on the input side.
Indexing tables, transfer units and positioning axes on automated assembly lines.
Belt, roller and screw conveyors on light and medium-duty material handling lines.
Filling heads, capping units, labeling axes and cartoning machines.
Light mixers, agitators and blenders where the gearbox must sit 90° to the shaft.
Goods lifts, small winches and material lifting devices on light-duty machines.
Feed rollers and positioning axes on woodworking machines and door operators.
Automatic sliding doors, rolling shutters and barrier drives where compact right-angle layout is needed.
Fillers, control machines, cleaning brushes and dosing axes.

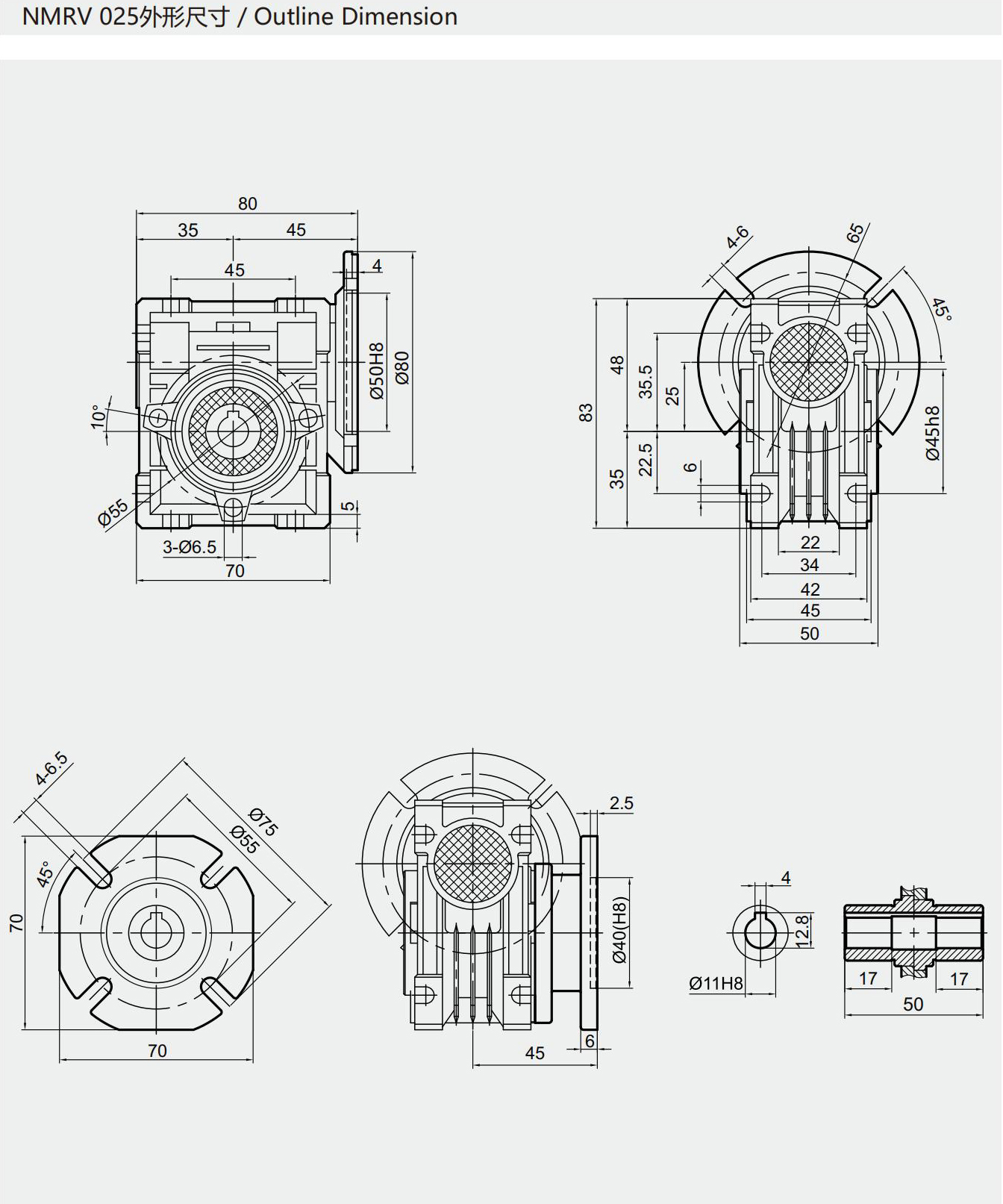

Reference parameters for the RV with servo motor package. Full mounting dimensions and motor adapter drawings are available on request.
RV worm reducer uses a hardened alloy steel worm and a tin bronze worm wheel, with different housing materials depending on frame size.
Common questions about the RV worm reducer, servo motor matching and OEM supply.
Provide output torque, required output speed, reduction ratio, mounting position and the servo motor drawing. Raydafon will confirm the correct RV frame, ratio and motor adapter, and reply with a factory-direct quotation within 24 hours.
