BKM Series High Efficiency Helical Hypoid Gearbox (Iron Housing)

BKM Series High Efficiency Helical Hypoid Gearbox (Iron Housing)

Description:

Introducing the BKM series of high-efficiency hypoid gear reducers, a powerful and reliable solution for your industrial needs. With two basic sizes, 110 and 130, you can choose the product that best suits your requirements.

This high-performance product operates in a power range from 0.18 to 7.5 kW, ensuring efficient and effective operation. It has a maximum output torque of 1500 Nm and can meet heavy-duty applications. The ratio range is impressive, with the two-speed transmission offering 7.5-60 and the three-speed transmission offering 60-300.

One of the outstanding features of the BKM series gearboxes is their impressive efficiency. The two-stage transmission efficiency can reach 92%, and the three-stage transmission efficiency can reach 90%. This ensures that not only do you have power, but you also get the most out of your energy.

Product Detail

When it comes to reliability, the BKM series excels. The cabinet is constructed from durable cast iron, ensuring long-lasting performance. Whether the base is 110 or 130, it is precision machined using a vertical machining center to ensure high precision and geometric tolerances.

The gears of the BKM series reducer are made of high-quality alloy materials, with high strength and long life. The gears are surface quenched and precision machined using a high-precision gear grinding machine to form hardened gears. The use of hypoid gearing further increases its strength and durability, allowing for larger transmission ratios.

In addition, the BKM series reducers can be seamlessly transitioned to the RV series worm gear reducers. The installation dimensions are fully compatible and can be easily integrated into your existing system.

In summary, the BKM series of high-efficiency hypoid gear reducers offer excellent performance, reliability and compatibility. Whether you need a two- or three-speed transmission, this product delivers the power, efficiency and durability you need to meet your industrial needs. Trust the BKM Series to deliver outstanding results and take your operations to new heights.

Application

1. Industrial robots, Industrial Automation, CNC machine tool manufacturing industry
2. Medical industry, automotive industry, printing, agriculture, food industry, enviroment protection engineering,warehouse logistics industry.

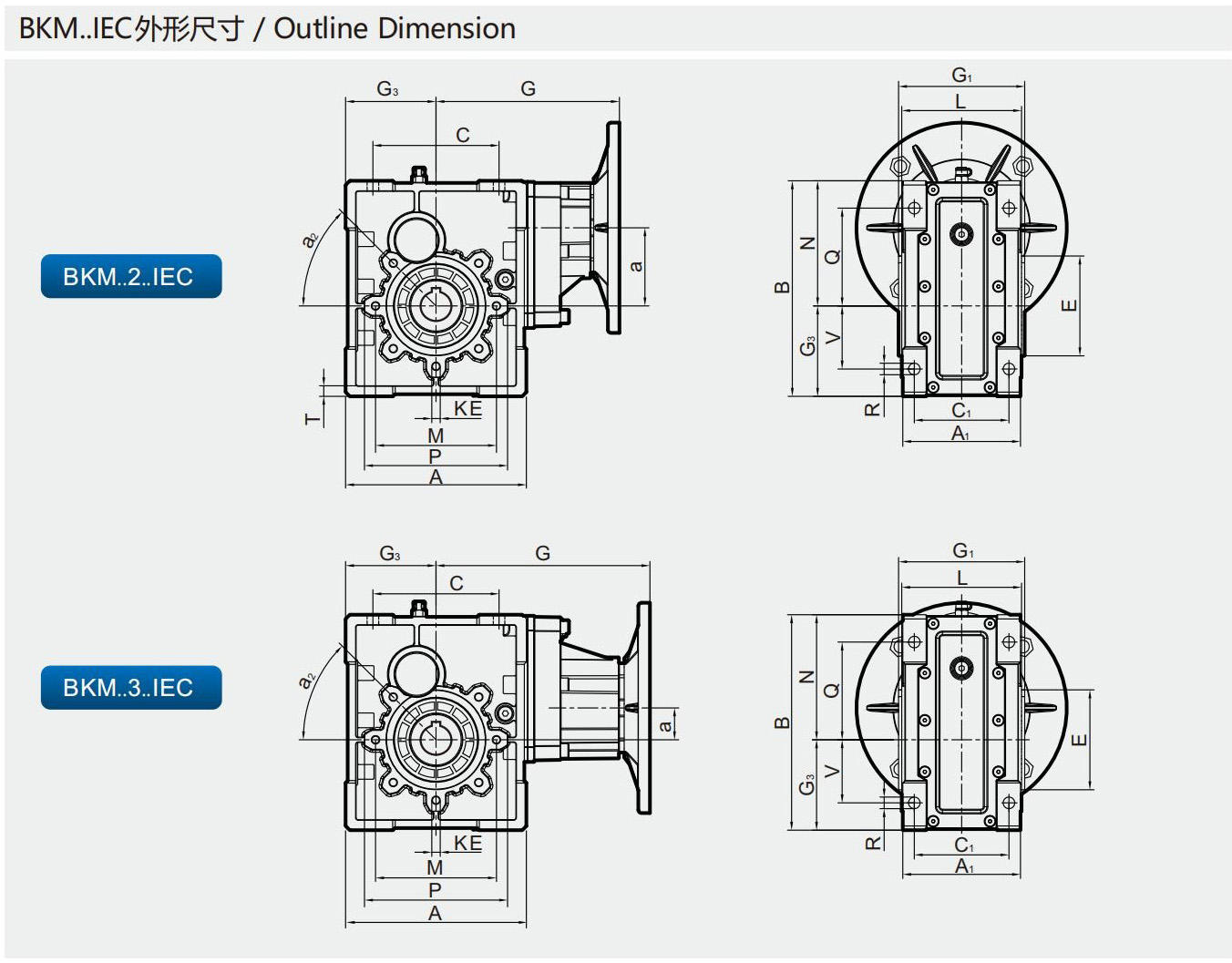

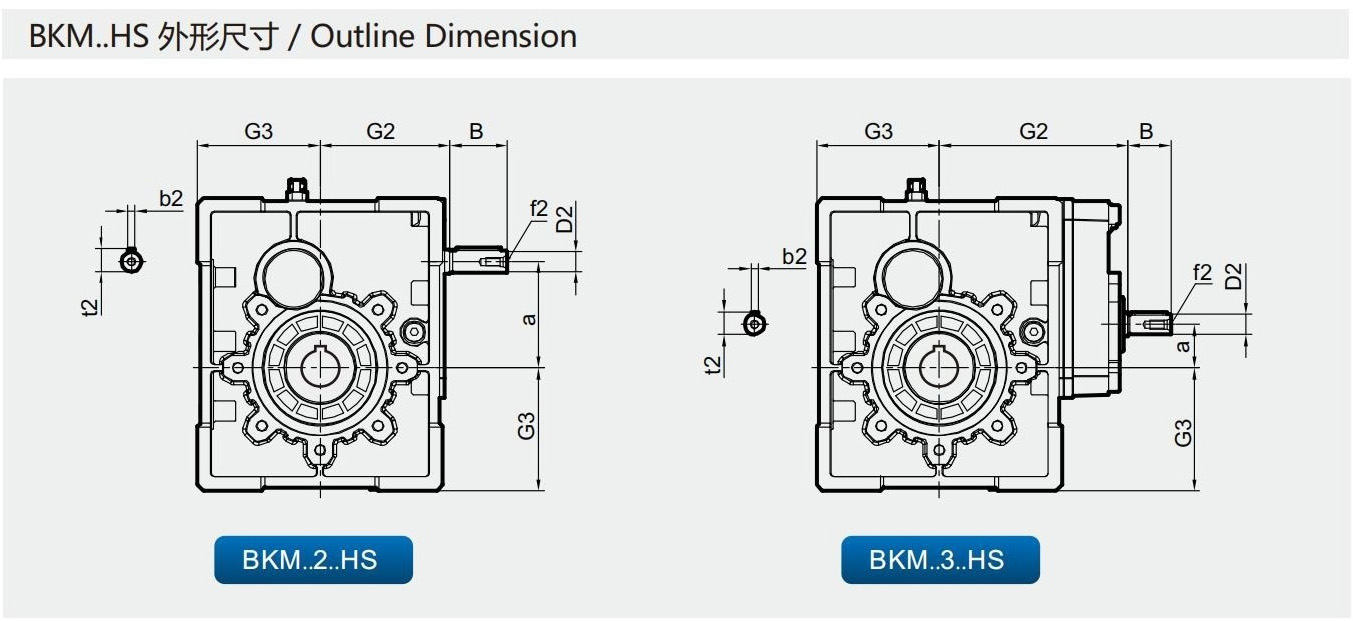

BKM	B	D2j6	G₂	G₃	a	b₂	t₂	f₂
1102	50	24	165	127.5	107	8	27	M8
1103	40	19	256	127.5	51	6	21.5	M6
1302	60	28	171.5	146.5	123	8	31	M10
1303	40	19	262	146.5	67	6	21.5	M6
