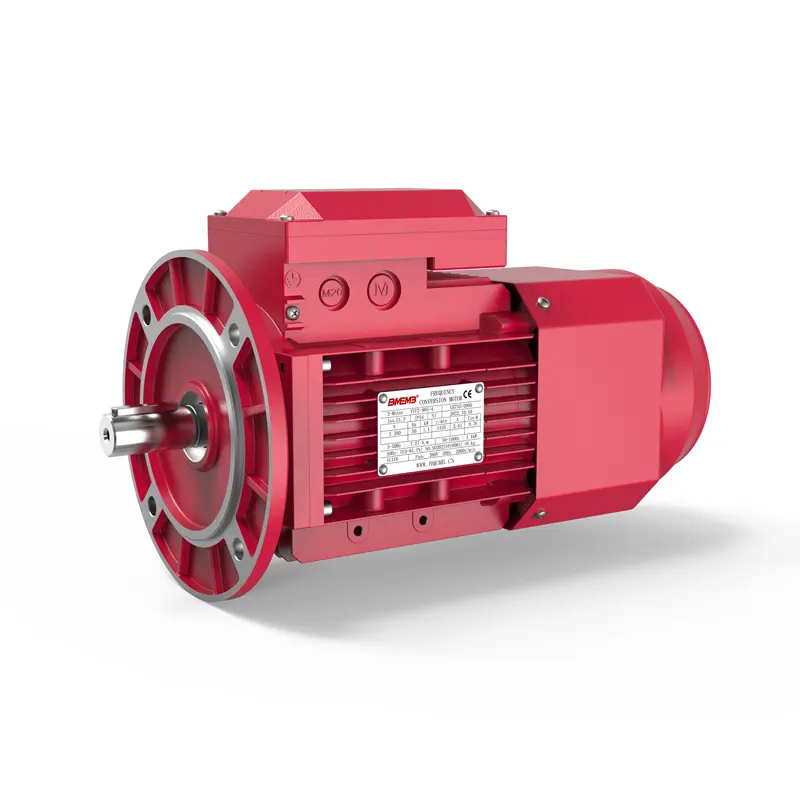

YVF2 Series Variable Speed AC Motor

The YVF2 series variable speed AC motor produced by ZHOUYI has good universality. The installation dimension meets the standard of IEC, so that it can be the replacement of the general standard electric motor. It can be widely used for food packaging machinery, chemical equipment, wood working machine, crane, construction machinery, compressor, transport conveyor, dredger, engine and transverter, washing machine, metal rolling machine, draught fan etc.

Send Inquiry

Product Description

YVF2 Series Variable Speed AC Motor

Product description

This series of electric motor can be divided into three models according to the speed:
1. The speed is 3000r/min and the rated power is from 0.18~22kw;
2. The speed is 1500r/min and the rated power is from 0.12~22kw;
3. The speed is 1000r/min and the rated power is from 0.18~15kw.

The adaptable voltage of all the three models of electric motors is 380V.

Technical parameters

3000r/min, 380V, 50Hz

Model	Rated power	Rated speed	Efficiency	Power factor	Rated current	Rated torque	Locked-rotor torque	Max torque	Variable frequency fan
	Rated power	Rated speed	Efficiency	Power factor	Rated current	Rated torque	Rated torque	Rated torque	Voltage V		Speed
	Kw	rpm	η%	COS ⌀	A	Nm	Ts/Tn	Tmax/Tn	3 phase	Single phase	Speed
YVF2-631-2	0.18	2800	65	0.80	0.53	0.61	2.2	2.2	380	220	2800
YVF2-632-2	0.25	2800	68.0	0.81	0.69	0.85	2.2	2.2	380	220	2800
YVF2-711-2	0.37	2830	70.0	0.81	0.99	1.25	2.2	2.2	380	220	2800
YVF2-712-2	0.55	2830	73.0	0.82	1.40	1.86	2.2	2.3	380	220	2800
YVF2-801-2	0.75	2840	75.0	0.83	1.83	2.52	2.2	2.3	380	220	2800
YVF2-802-2	1.1	2840	77.0	0.85	2.55	3.70	2.2	2.3	380	220	2800
YVF2-90S-2	1.5	2840	79.0	0.85	3.39	5.04	2.2	2.3	380	220	2800
YVF2-90L-2	2.2	2840	81.0	0.86	4.80	7.40	2.2	2.3	380	220	2800
YVF2-100L-2	3	2860	83.0	0.86	6.31	10.0	2.2	2.3	380	220	2800
YVF2-112M-2	4	2880	84.0	0.87	8.22	13.3	2.2	2.3	380	220	2800
YVF2-132S1-2	5.5	2910	85.0	0.88	11.2	18.0	2.2	2.3	380	220	2800
YVF2-132S2-2	7.5	2910	86.0	0.88	15.1	24.6	2.2	2.3	380	220	2800
YVF2- 160M1 -2	11	2930	88.0	0.88	21.3	35.9	2.2	2.3	380	220	2800
YVF2-160M2-2	15	2930	89.0	0.89	28.8	40.9	2.2	2.3	380	220	2800
YVF2-160L-2	10.5	2935	90.0	0.90	34.7	60.2	2.2	2.3	380	220	2800
YVF2-180M-2	22	2935	90.0	0.90	41.3	71.6	2.0	2.3	380	220	2800

1500r/min, 380V, 50Hz

Model	Rated power	Rated speed	Efficiency	Power factor	Rated current	Rated torque	Locked-rotor torque	Max torque	Variable frequency fan
	Rated power	Rated speed	Efficiency	Power factor	Rated current	Rated torque	Rated torque	Rated torque	Voltage V		Speed
	Kw	rpm	η%	COS ⌀	A	Nm	Ts/Tn	Tmax/Tn	3 phase	Single phase	Speed
YVF2-631-4	0.12	1360	57.0	0.72	0.44	0.84	2.2	2.0	380	220	2800
YVF2-632-4	0.19	1360	60.0	0.73	0.62	1.26	2.2	2.0	380	220	2800
YVF2-711-4	0.25	1375	65.0	0.74	0.79	1.74	2.2	2.0	380	220	2800
YVF2-712-4	0.37	1375	67.0	0.75	1.12	2.57	2.2	2.0	380	220	2800
YVF2-801-4	0.55	1405	71.0	0.75	1.57	3.74	2.2	2.4	380	220	2800
YVF2-802-4	0.75	1405	73.0	0.77	2.02	5.10	2.2	2.4	380	220	2800
YVF2-90S-4	1.1	1445	75.0	0.79	2.82	7.27	2.2	2.3	380	220	2800
YVF2-90L-4	1.5	1445	78.0	0.79	3.70	9.91	2.2	2.3	380	220	2800
YVF2-100L1-4	2.2	1440	80.0	0.81	5.16	14.6	2.2	2.3	380	220	2800
YVF2-100L2-4	3	1440	82.0	0.82	6.78	19.9	2.2	2.3	380	220	2800
YVF2-112M-4	4	1440	84.0	0.82	8.82	26.5	2.2	2.3	380	220	2800
YVF2-132S1-4	5.5	1440	85.0	0.84	11.7	36.5	2.2	2.3	380	220	2800
YVF2-132S2-4	7.5	1440	87.0	0.84	15.6	49.7	2.2	2.3	380	220	2800
YVF2-160M-4	11	1450	88.O	0.85	21.3	72.4	2.2	2.2	380	220	2800
YVF2-160L-4	15	1450	89.0	0.85	30.1	98.8	2.2	2.2	380	220	2800
YVF2-I80M-4	18.5	1455	90.5	0.86	36.5	121.4	2.2	2.2	380	220	2800
YVF2-180L-4	22	1455	91.0	0.86	43.1	144.4	2.0	2.2	380	220	2800

1000r/min, 380V, 50Hz

Model	Rated power	Rated speed	Efficiency	Power factor	Rated current	Rated torque	Locked-rotor torque	Max torque	Variable frequency fan
	Rated power	Rated speed	Efficiency	Power factor	Rated current	Rated torque	Rated torque	Rated torque	Voltage V			Speed
	Kw	rpm	η%	COS ⌀	A	Nm	Ts/Tn	Tmax/Tn	3 phase		Single phase	Speed
YVF2-711-6	0.18	900	58.0	0.66	0.71	1.91	1.9	2.0	380	220		2800
YVF2-712-6	0.25	900	59.0	0.68	0.95	2.65	1.9	2.0	380	220		2800
YVF2-801-6	0.37	910	62.0	0.70	1.30	3.88	1.9	2.0	380	220		2800
YVF2- 802 -6	0.55	910	65.0	0.72	1.79	5.77	1.9	2.1	380	220		2800
YVF2-90S-6	0.75	930	70.0	0.72	2.26	7.7	2.1	2.1	380	220		2800
YVF2-90L-6	1.1	940	73.0	0.73	3.14	11.2	2.1	2.1	380	220		2800
YVF2-100L-6	1.5	940	76.0	0.76	3.95	15.2	2.2	2.1	380	220		2800
YVF2-112M-6	2.2	960	79.0	0.76	5.57	21.9	2.2	2.1	380	220		2800
YVF2-132S-6	3	9G0	81.0	0.76	7.40	29.8	2.2	2.1	380	220		2800
YVF2-132M1-6	4	960	83.0	0.76	9.63	39.8	2.2	2.1	380	220		2800
YVF2-132M2-6	5.5	960	84.0	0.77	12.9	54.7	2.2	2.1	380	220		2800
YVF2-160M-6	7.5	970	86.0	0.78	17.0	73.8	1.8	2.1	380	220		2800
YVF2-160L -6	11	970	87.0	0.79	24.3	108.3	1.9	2.1	380	220		2800
YVF2-180L-6	15	970	89.0	0.81	31.6	147.7	2.1	2.1	380	220		2800

Model code:
(Take YVF2 - 90 - S - 4 - B5 as an example.)
YVF2: series code;
90: frame No.;
S: core code;
4: grade;
B5: installation method of electric motor.

Outline and installation dimension

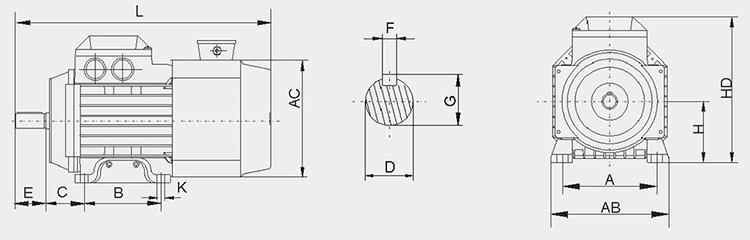

IM B3 H63-180

Dimension figure

Frame No.	A	B	C	D	E	F	G	H	K	AB	AC	HD	L
63	100	80	40	⌀11	23	4	12.5	63	⌀7	135	120x120	167	270
71	112	90	45	⌀14	30	5	16	71	⌀7	137	130x130	178	315
80	125	100	50	⌀19	40	6	21.5	80	⌀10	155	145x145	190	340
90S	140	100	56	⌀24	50	8	27	90	⌀10	175	160x160	205	400
90L	140	125	56	⌀24	50	8	27	90	⌀10	175	160x160	205	400
100L	160	140	63	⌀28	60	8	31	100	⌀12	200	185x185	240	430
112M	190	140	70	⌀28	60	8	31	112	⌀12	230	200 x 200	270	480
132S	216	140	89	⌀38	80	10	41	132	⌀12	270	245 x 245	315	567
132M	216	178	89	⌀38	80	10	41	132	⌀12	270	245 x 245	315	567
160M	254	210	108	⌀42	110	12	45	160	⌀14.5	320	335x335	450	850
160L	254	254	108	⌀42	110	12	45	160	⌀14.5	320	335x335	450	870
180M	279	241	121	⌀48	110	14	51.5	180	⌀14.5	355	370x370	500	880
180L	279	279	121	⌀48	110	14	51.5	180	⌀14.5	355	370x370	500	980

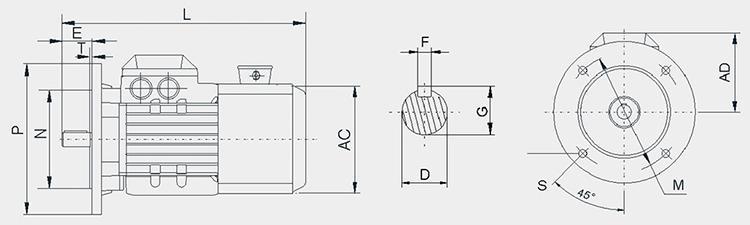

IM B14 H63-112

Dimension figure

Frame No.	D	E	F	G	M	N	P	S	T	AC	AD	L
63	⌀11	23	4	12.5	75	60	90	M5	2.5	120x120	104	270
71	⌀14	30	5	16	85	70	105	M6	2.5	130x130	107	315
80	⌀19	40	6	21.5	100	80	120	M6	3.0	145x145	115	340
90S	⌀24	50	8	27	115	95	140	M8	3.0	160x160	122	400
90L	⌀24	50	8	27	115	95	140	M8	3.0	160x160	122	400
100L	⌀28	60	8	31	130	110	155	M8	3.5	185x185	137	430
112M	⌀28	60	8	31	130	110	160	M8	3.5	200x200	155	480

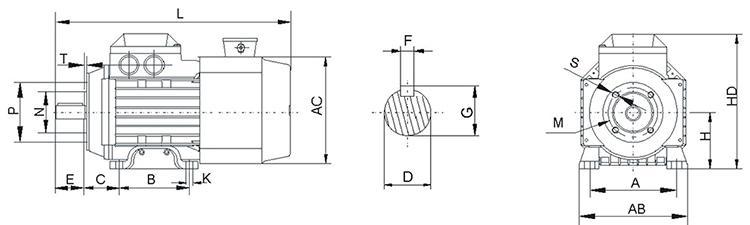

IM B34 H63-112

Dimension figure

Frame No.	A	B	C	D	E	F	G	H	K	M	N	P	S	T	AB	AC	HD	L
63	100	80	40	⌀11	23	4	12.5	63	⌀7	75	60	90	M5	2.5	135	120x120	167	270
71	112	90	45	⌀14	30	5	16	71	⌀7	85	70	105	M6	2.5	137	130x130	178	315
80	125	100	50	⌀19	40	6	21.5	80	⌀10	100	80	120	M6	3.0	155	145x145	190	340
90S	140	100	56	⌀24	50	8	27	90	⌀10	115	95	140	M8	3.0	175	160x160	205	400
90L	140	125	56	⌀24	50	8	27	90	⌀10	115	95	140	M8	3.0	175	160x160	205	400
100L	160	140	63	⌀28	60	8	31	100	⌀12	130	110	155	M8	3.5	200	185x185	240	430
112M	190	140	70	⌀28	60	8	31	112	⌀12	130	110	160	M8	3.5	230	200 x 200	270	480

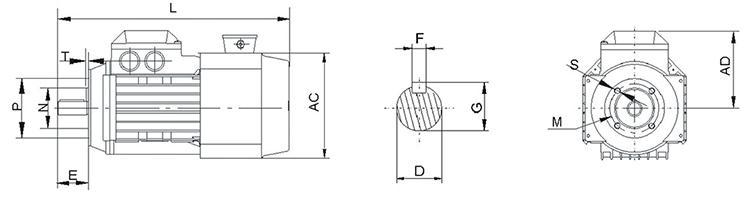

IM B5 H63-180

Dimension figure

Frame No.	D	E	F	G	M	N	P	S	T	AC	AD	L
63	⌀11	23	4	12.5	115	95	140	10	3.0	120x120	104	280
71	⌀14	30	5	16	130	110	160	10	3.5	130x130	107	315
80M	⌀19	40	6	21.5	165	130	200	12	3.5	145x145	115	340
90S	⌀24	50	8	27	165	130	200	12	3.5	160x160	122	400
90L	⌀24	50	8	27	165	130	200	12	3.5	160x160	122	400
100L	⌀28	60	8	31	215	180	250	14.5	4	185x185	137	430
112M	⌀28	60	8	31	215	180	250	14.5	4	200 x 200	155	480
132S	⌀38	80	10	41	265	230	300	14.5	4	245 x 245	180	567
132M	⌀38	80	10	41	265	230	300	14.5	4	245 x 245	180	567
160M	⌀42	110	12	45	300	250	350	18.5	5	335x335	290	850
160L	⌀42	110	12	45	300	250	350	18.5	5	335x335	290	870
180M	⌀48	110	14	51.5	300	250	350	18.5	5	370x370	340	880
180L	⌀48	110	14	51.5	300	250	350	18.4	5	370x370	340	980

IM B35 H63-180

Dimension figure

Frame No.	A	B	C	D	E	F	G	H	K	M	N	P	S	T	AB	AC	HD	L
63	100	80	40	⌀11	23	4	12.5	63	⌀7	115	95	140	10	2.5	115	120x120	167	280
71	112	90	45	⌀14	30	5	16	71	⌀7	130	110	160	10	3.5	136	130x130	178	315
80M	125	100	50	⌀19	40	6	21.5	80	⌀10	165	130	200	12	3.5	154	145x145	190	340
90S	140	100	56	⌀24	50	8	27	90	⌀10	165	130	200	12	3.5	180	160x160	205	400
90L	140	125	56	⌀24	50	8	27	90	⌀10	165	130	200	12	3.5	180	160x160	205	400
100L	160	140	63	⌀28	60	8	31	100	⌀12	215	180	250	14.5	4	205	185x185	240	430
112M	190	140	70	⌀28	60	8	31	112	⌀12	215	180	250	14.5	4	235	200x200	270	480
132S	216	140	89	⌀38	80	10	41	132	⌀12	265	230	300	14.5	4	261	245x245	310	567
132M	216	178	89	⌀38	80	10	41	132	⌀12	265	230	300	14.5	4	261	245x245	310	567
160M	254	210	108	⌀42	110	12	45	160	⌀14.5	300	250	350	18.5	5	320	335x335	450	850
160L	254	254	108	⌀42	110	12	45	160	⌀14.5	300	250	350	18.5	5	320	335x335	450	870
180M	279	241	121	⌀48	110	14	51.5	180	⌀14.5	300	250	350	18.5	5	355	370x370	500	880
180L	279	279	121	⌀48	110	14	51.5	180	⌀14.5	300	250	350	18.5	5	355	370x370	500	980
