UDL/UD Mechanical Speed Variators two

Achieve precise mechanical speed control with Raydafon’s UDL/UD variators—the reliable alternative to electronic drives. These robust units use planetary gearing to deliver stepless speed adjustment from 1:4 to 1:7 ratios, ideal for mixers, conveyors, and rotary tables. Featuring splash-proof construction and overload protection, they thrive in harsh industrial settings. Raydafon’s VariLock™ system prevents speed drift, ensuring consistent output even under varying loads. With minimal maintenance requirements and a 10-year lifespan, UDL/UD variators are the cost-effective choice for simple, durable speed control.

Send Inquiry

Product Description

Models

Foot Mounted B3 – UDL002~UD050

Flange Mounted B5 – UDL002~UD050

Available with NMRV/XMRV:

- UDL002-NMRV040/050
- UDL005-NMRV050/063
- UDL010-NMRV063/075/090/110
- UD020-NMRV075/090/110/130
- UD030-NMRV110/130
- UD050-NMRV110/130

Components

1. Housing:
Aluminum Alloy(UDL Series) / Cast Iron(UD Series)

2. Input Configurations:
Equipped with Electric Motors
IEC-normalized Motor Flange

3. Output Configurations:
Solid Shaft Output
Solid Shaft Output with Output Flange

Features

1. Adjustable speed span can be accurate to 0.5~1 r/min
2. Can be combined with other types of gearboxes (Such as R Series, K Series, F Series, S Series, RV Series, WB Series cycloid reducers)
3. Compact structure
4. Clockwise and counterclockwise rotation

Parameters

Models	Power	Ratio	Output Speed(n2)*	Output Torque	Output Shaft Dia.	Output Flange Dia.
UDL002	0.18KW	1.6~8.2	800~170r/min	1.5~3N.m	Φ11	Φ140
UDL005	0.25KW	1.4~7	1000~200r/min	2.2~6N.m	Φ14	Φ160
UDL005	0.37KW	1.4~7	1000~200r/min	3~6N.m	Φ14	Φ160
UDL010	0.55KW	1.4~7	1000~200r/min	4~8N.m	Φ19	Φ200
UDL010	0.75KW	1.4~7	1000~200r/min	6~12N.m	Φ19	Φ200
UD020	1.1KW	1.4~7	1000~200r/min	9~18N.m	Φ24	Φ200
UD020	1.5KW	1.4~7	1000~200r/min	12~24N.m	Φ24	Φ200
UD030	2.2KW	1.4~7	1000~200r/min	18~36N.m	Φ28	Φ250
UD030	3.0KW	1.4~7	1000~200r/min	24~48N.m	Φ28	Φ250
UD030	4.0KW	1.4~7	1000~200r/min	32~64N.m	Φ28	Φ250
UD050	5.5KW	1.4~7	1000~200r/min	45~90N.m	Φ38	Φ300
UD050	7.5KW	1.4~7	1000~200r/min	59~118N.m	Φ38	Φ300

* Input Speed n1=1400r/min

Installation:

B3 Foot-mounted
B5 Flange-mounted

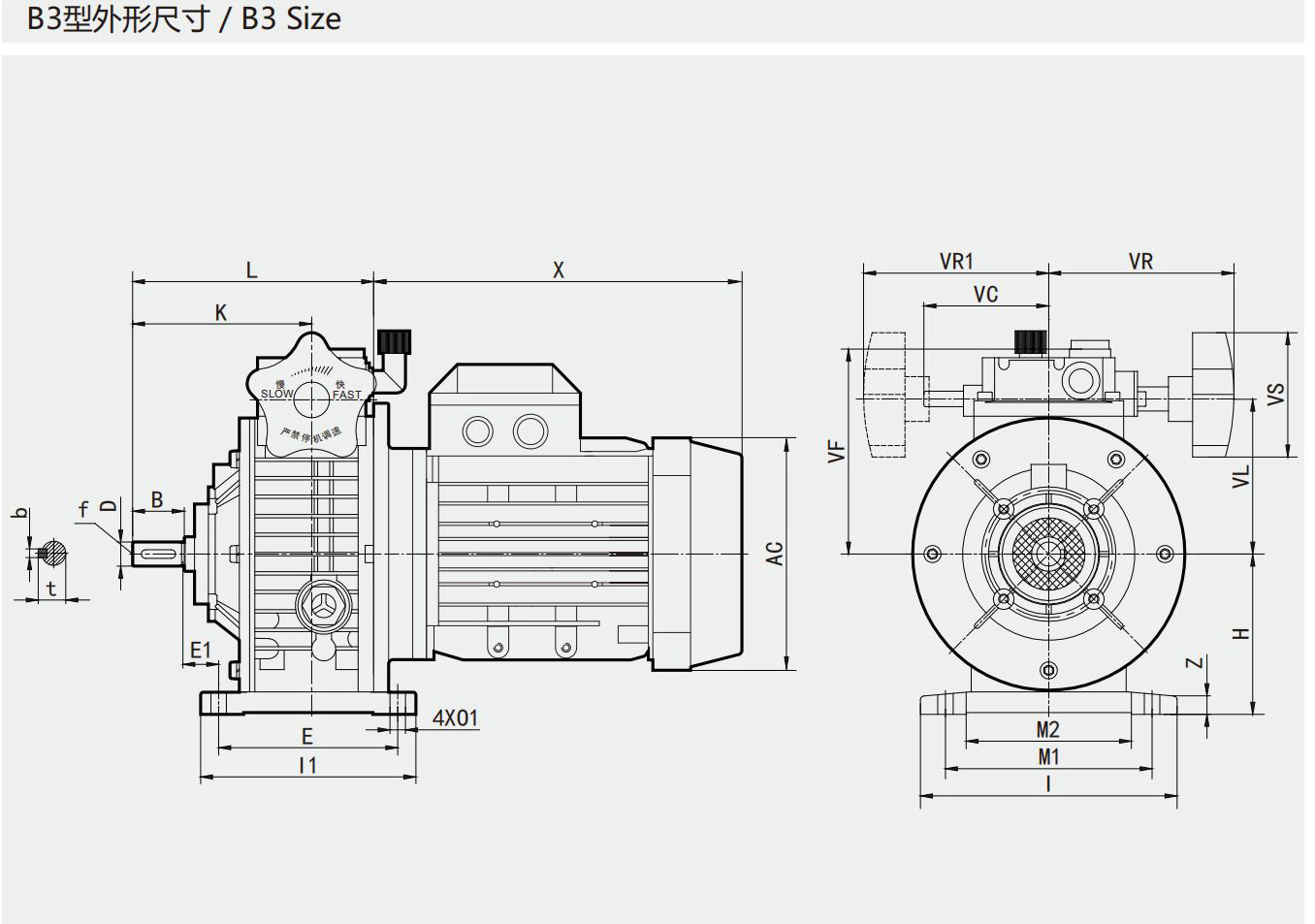

B3 type frame installation form

TYPE	B	Dj6)	E	E1	H		11	K	L	M1	M2	01	VC	VF	VL	VR	VR1	VS	b	t	Z	f
UDL002	23	11	105	17.5	80	145	120	87.5	135.5	110	71	9	71	111	78	110	110	85	4	12.5	10	-
UDL005	30	14	104	20	93	149	125	104	140	120	96	9	71	123	90	110	110	85	5	16	10	M6
UDL010	40	19	125	26	113	190	150	125.5	179	160	135	11	79	140	107	120	120	110	6	21.5	15	M6
UDT020	50	24	140	49	123	241	150	165	238	180	143	12	-	144	122	150	-	110	8	27	18	M8
UDT030	60	28	230	25	150	300	270	191	268	245	190	14	-	188	150	160	-	110	8	31	25	M8
UDT050	70	38	250	33	200	365	290	201	319	315	245	18	-	-	192	194	-	110	10	41	30	M10

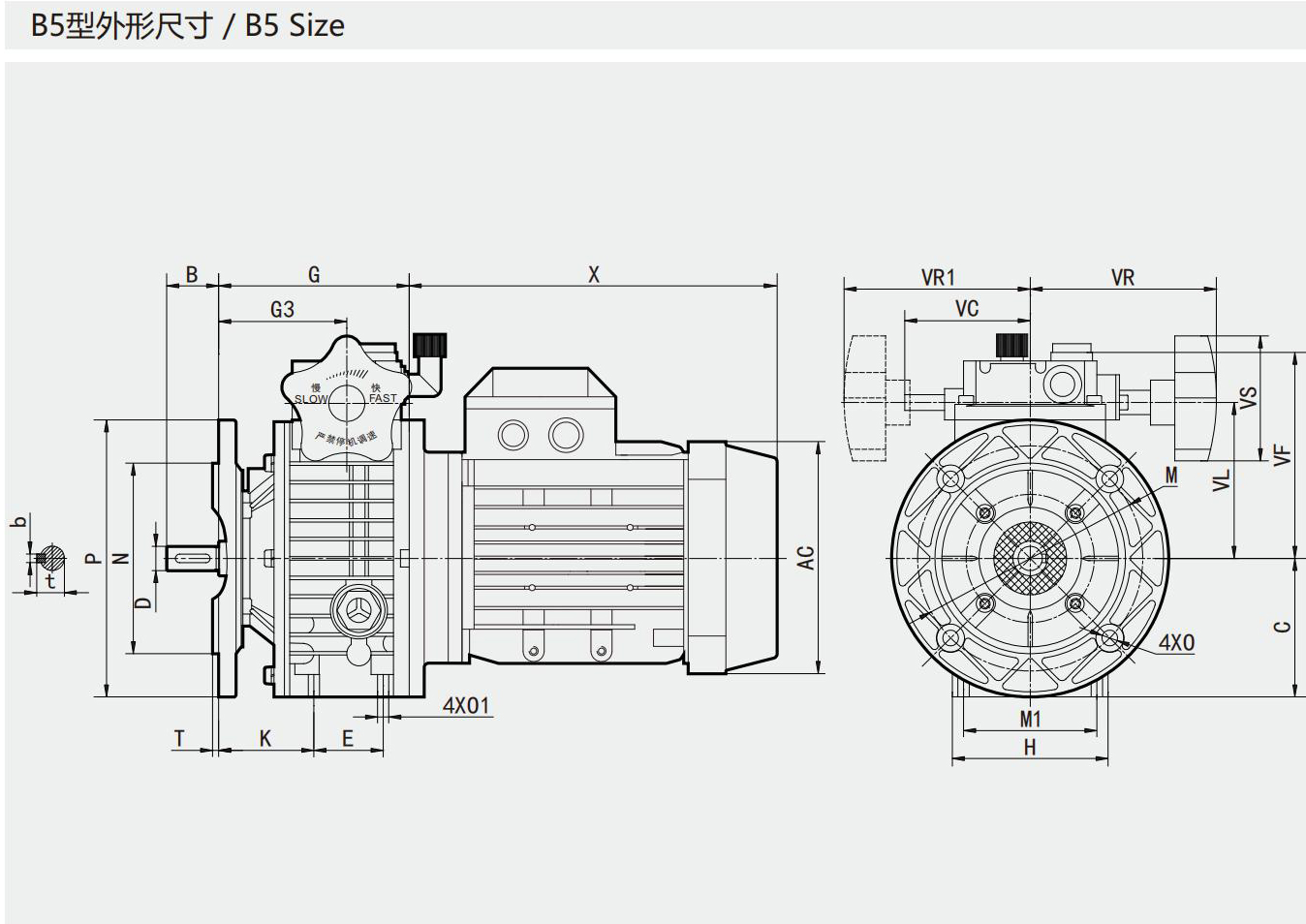

B5 TYPE FRAME INSTALLATION FORM

TYPE	B	C	D(j6)	E	G	G3	H	M	M1	N	0	01	P	T	K	VC	VF	VL	VR	VR1	b	t
UDL002	23	70	11	50	112.5	64.5	72	115	60	95	9	M6	140	3.5	46	71	111	78	110	110	4	12.5
UDL005	30	80	14	40	110	74	90	130	77	110	9	M8	160	3.5	53	71	123	90	110	110	5	16
UDL010	40	100	19	58	139	85.5	98	165	84	130	11	M8	200	3.5	60	79	140	107	120	120	6	21.5
UDT020	50	109	24	-	188	115	241	165	-	130	11	-	200	3.5	-	-	144	122	150	-	8	27
UDT030	60	130	28	-	208	131	270	215	-	180	15	-	250	4	-	-	188	150	160	-	8	31
UDT050	70	200	38	-	244	131	-	265	-	230	19	-	300	4	-	-	-	192	194	-	10	41
